The Kawasaki KLX650 is a single cylinder road-trail/enduro motorcycle, produced between 1993 and 2003. The bike was initially available in two distinct guises: a fully complianced and therefore road-registerable version, with electric start (the "C" model); and a lighter, more powerful, kick start version, that was strictly for off-road use (the "A" model or KLX650R). Both models shared an almost identical 651cc, all-alloy, liquid-cooled, double overhead camshaft engine and 5-speed transmission. The A model however, was in a higher state of tune, with racier valve timing, carburettor modifications, and a less restricted exhaust system. Additionally, the A model was 26kg lighter, had a 20mm shorter wheelbase, and longer travel suspension.
For a number of years, a group of Kawasaki dealers in Australia, ably lead by Griffo's Motorcycles Cairns, had petitioned Kawasaki to produce a fully complianced version of the KLX650R. They believed that such a bike would be enormously popular in Australia, as the somewhat heavy KLX650C series was considered unviable for serious off-road use in that country, and the convenience of a road-registered KLX650R was seen as the only way sales of the KLX650 would continue.
In 1996, Kawasaki announced that year would be the last for the KLX650C, and that it would only be available in the US. The KLX650R "A" model would continue, but two versions would be sold. The new "B" model would be available in Australia only and was basically a KLX650R with better electrics and other minor modifications to enable compliance for the road in Australia. It carried a cut-down KLX650C instrument cluster (with speedometer), better lighting, flasher indicators, a number plate mount and light, and a rudimentary chain guard, attached to the frame. It was 11kg heavier than the "A" model, but still 15kg lighter than the "C" model.
In Europe and the US, the KLX650R (A model) became the
"D" model, with only slight changes. These were the most successful versions of the KLX650 (especially the KLX650B series), and continued in production until 2003.
Specifications

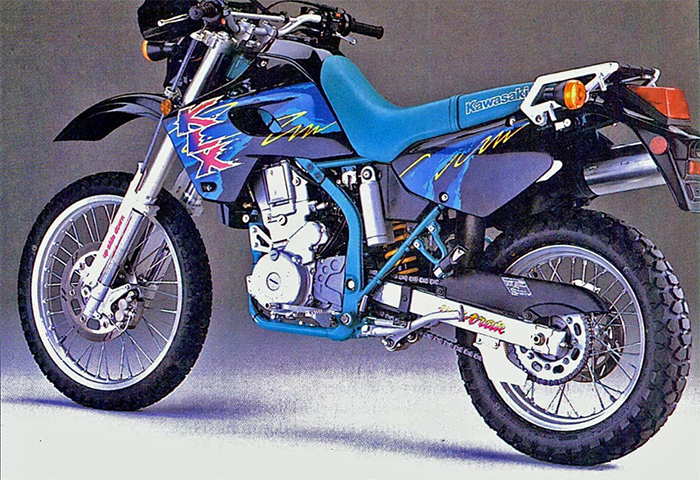

KLX650-C1, C2, C3, C4 (1993-1996)
Dimensions:
Overall length - 2250 mm, (FG)(GR)(NR)(SD)(ST) 2265 mm, (IT) 2285 mm
Overall width - 900 mm
Overall height - 1190 mm
Wheelbase - 1510 mm
Road clearance - 265 mm
Seat height - 885 mm
Dry weight - 153 kg, (CA) 154 kg
Curb weight:
Front - 80 kg, (CA) 81 kg
Rear - 90 kg
Fuel tank capacity - 12L
Performance:
Minimum turning radius - 2.4m
Engine:
Type - 4-stroke, DOHC, 1-cylinder
Cooling system - Liquid - cooled
Bore and stroke - 100.0 x 83.0 mm
Displacement - 651cc
Compression ratio - 9.5:1 (C1, C2), 10.5:1 (C3, C4)
Maximum horsepower - 33 kW (45 ps) @6500 r/min (rpm) (C1, C2), 35 kW (47.5 ps) @6500 r/min (rpm) (C3, C4), (AR) 20 kW (27 ps) @6000 r/min (rpm), (ST)20 kW (27 ps) @5000 r/min (rpm)
Maximum torque - 53 N-m (39.1 ft-lb) @5000 r/min (rpm) (C1, C2), 54 N-m (39.8 ft-lb) @5000 r/min (rpm) (C3, C4), (AR)44.5 N-m (4.5 kg-m, 32.5 ft-lb) @3000 r/min (rpm), (ST)40 N-m (4.1 kg-m, 29.6 ft-lb) @3500 r/min (rpm)
Carburetion system:
Carburetor - KEIHIN CVK40 x1
Starting system - Electric starter
Ignition system - CDI
Timing
Advance - Electronically advanced
Ignition timing - 5° BTDC @1300 r/min (rpm) to 31° BTDC @3000 r/min (rpm)
Spark plug - NGK DPR8EA-9, ND X24EPR-U9
Valve timing:
Inlet - Open 17° BTDC, Close 63°ABDC, Duration 260°
Exhaust - Open 53° BBDC, Close 27° ATDC, Duration 260°
Lubrication system:
Type - Forced lubrication (wet sump)
Engine oil:
Grade - SE or SF class
Viscosity - SAE10W-40, 10W-50, 20W-40, or 20W-50
Capacity - 1.8 L
Drive Train:
Primary reduction system:
Type - Gear
Reduction ratio - 2.272 (75/33)
Clutch type - Wet multi disc
Transmission:
Type - 5-speed, constant mesh, return shift
Gear ratios:
1st - 2.266 (34/15)
2nd - 1.529 (26/17)
3rd - 1.181 (26/22)
4th - 0.954 (21/22)
5th - 0.791 (19/24)
Final drive system:
Type - Chain drive
Reduction ratio - 2.866 (43/15)
Overall drive ratio - 5.157 in 5th gear
Frame:
Type - Tubular, semi double cradle
Caster (rake angle) - 28.5°
Trail - 112 mm
Front tyre:
Type - Tube, Dunlop Trailmax, (AS) Dunlop Trailmax J, (US) Dunlop K850A
Size - 90/90-21 54S
Rear tyre:
Type - Tube, Dunlop Trailmax, (AS) Dunlop Trailmax J, (US) Dunlop K850AG
Size - 130/80-17 64S
Front suspension:
Type - Kayaba upside-down telescopic fork (pneumatic)
Wheel travel - 285 mm
Rear suspension:
Type - Swingarm (uni-trak with Kayaba shocker)
Wheel travel - 260 mm
Brake type:
Front - Single disk 250mm (Nissin)
Rear - Single disk 230mm (Nissin)
Electrical Equipment:
Battery - 12 V 8 Ah
Headlight:
Type - Semi-sealed beam
Bulb - 12V 60/55W (quartz-halogen)
Tail/brake light - 12V 5/21W, (US) 12V 8/27W
Alternator:
Type - Three-phase AC
Rated output - 17A/14V @6000 r/min (rpm)
(IT) Italy Model
(NR) Norway Model
(SD) Sweden Model
(ST) Switzerland Model
(US) U.S. Model
(AR) Austria Model
(AS) Australia Model
(CA) California Model
(FG) Germany Model
(GR) Greece Model

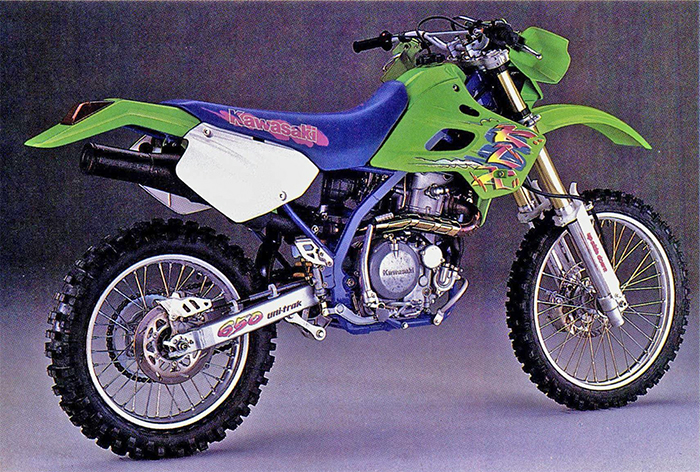

KLX650-A1, A2, A3 (1993-1995)
Dimensions:
Overall length - 2215 mm
Overall width - 925 mm
Overall height - 1230 mm
Wheelbase - 1490 mm
Road clearance - 330 mm
Seat height - 950 mm
Dry weight - 127 kg (A1), 127.5 kg (A2, A3)
Curb weight:
Front - 63 kg (A1), 63.5 kg (A2, A3)
Rear - 74 kg
Fuel tank capacity - 8 L
Performance:
Minimum turning radius - 2.4m
Engine:
Type - 4-stroke, DOHC, 1-cylinder
Cooling system - Liquid - cooled
Bore and stroke - 100.0 x 83.0 mm
Displacement - 651 mL
Compression ratio - 9.5: 1 (A1, A2), 10.5:1 (A3)
Maximum horsepower -
35 kW (47.6 ps) @6500 r/min (rpm) (A1, A2), 37 kW (50.3 ps) @6500 r/min (rpm) (A3)
Maximum torque -
52 N-m (38.4 ft-lb) @5500 r/min (rpm) (A1, A2), 53 N-m (39.1 ft-lb) @5500 r/min (rpm) (A3)
Carburetion system - Carburetor, KEIHIN CVK40 x1
Starting system - Primary kick
Ignition system - CDI
Timing advance - Electronically advanced
Ignition timing - From 8° BTDC @1300 r/min (rpm) to 30° BTDC @3000 r/min (rpm)
Spark plug - NGK DPR8EA-9, ND X24EPR-U9
Valve timing:
Inlet - Open 19° BTDC, Close 65° ABDC, Duration 264°
Exhaust - Open 53° BBDC, Close 27° ATDC, Duration 260°
Lubrication system - Forced lubrication (wet sump)
Engine oil:
Grade - SE or SF class
Viscosity - SAE10W-40, 10W-50, 20W-40, or 20W-50
Capacity - 1.5 L
Drive Train:
Primary reduction system:
Type - Gear
Reduction ratio - 2.272 (75/33)
Clutch type - Wet multi disc
Transmission:
Type - 5-speed, constant mesh, return shift
Gear ratios:
1st - 2.266 (34/15)
2nd - 1.529 (26/17)
3rd - 1.181 (26/22)
4th - 0.954 (21/22)
5th - 0.791 (19/24)
Final drive system:
Type - Chain drive
Reduction ratio - 3.500 (49/14)
Overall drive ratio - 6.297 in 5th gear
Frame:
Type - Tubular, semi double cradle
Caster (rake angle) - 28.5°
Trail - 122 mm
Front tyre:
Type - Tube, Dunlop D752F
Size - 80/100-21 51M
Rear tyre:
Type - Tube, Dunlop D752
Size - 110/100-18 64M
Front suspension:
Type - Kayaba Upside-down Telescopic fork (pneumatic)
Wheel travel - 300 mm
Rear suspension:
Type - Swingarm (uni-trak with Kayaba gas shock)
Wheel travel - 285 mm
Brake type:
Front - Single disc 250mm Nissin
Rear - Single disc 235mm Nissin
Electrical Equipment:
Headlight:
Type - Semi-sealed beam
Bulb - 12V 30W
Taillight - 12V 10W
Alternator:
Type - Three-phase AC
Rated output -
More than 36V

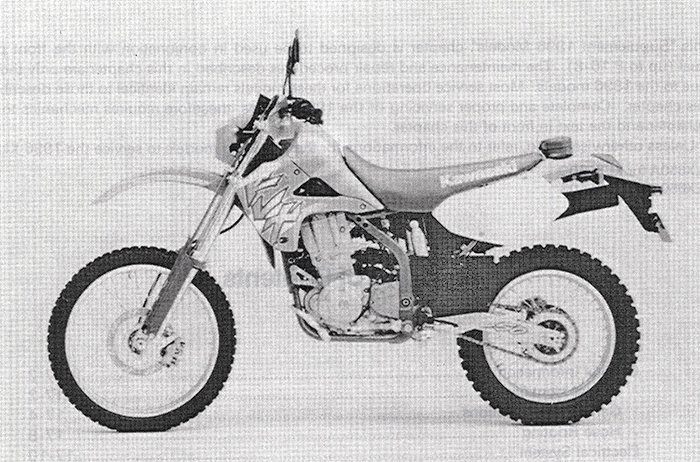

KLX650-B1, B2, B3 (1996-2003)
Dimensions:
Overall length - 2225 mm
Overall width - 925 mm
Overall height - 1265 mm
Wheelbase - 1485 mm
Road clearance - 325 mm
Seat height - 960 mm
Dry weight - 138 kg
Curb weight:
Front - 70 kg
Rear - 80 kg
Fuel tank capacity - 11.6 L
Performance:
Minimum turning radius - 2.4m
Engine:
Type - 4-stroke, DOHC, 1-cylinder
Cooling system - Liquid - cooled
Bore and stroke - 100.0 x 83.0 mm
Displacement - 651 mL
Compression ratio - 10.5: 1
Maximum horsepower -
37 kW (50.3 ps) @6500 r/min (rpm)
Maximum torque -
53 N-m (39.1 ft-lb) @5500 r/min (rpm)
Carburetion system - Carburetor, KEIHIN CVK40 x1
Starting system - Primary kick
Ignition system - CDI
Timing advance - Electronically advanced
Ignition timing - From 8° BTDC @1300 r/min (rpm) to 30° BTDC @3000 r/min (rpm)
Spark plug - NGK DPR8EA-9, ND X24EPR-U9
Valve timing:
Inlet - Open 19° BTDC, Close 65° ABDC, Duration 264°
Exhaust - Open 53° BBDC, Close 27° ATDC, Duration 260°
Lubrication system - Forced lubrication (wet sump)
Engine oil:
Grade - SE, SF, SG, SH, SJ class
Viscosity - SAE10W-40, 10W-50, 20W-40, or 20W-50
Capacity - 1.5 L
Drive Train:
Primary reduction system:
Type - Gear
Reduction ratio - 2.272 (75/33)
Clutch type - Wet multi disc
Transmission:
Type - 5-speed, constant mesh, return shift
Gear ratios:
1st - 2.266 (34/15)
2nd - 1.529 (26/17)
3rd - 1.181 (26/22)
4th - 0.954 (21/22)
5th - 0.791 (19/24)
Final drive system:
Type - Chain drive
Reduction ratio - 2.533 (38/15)
Overall drive ratio - 4.558 in 5th gear
Frame:
Type - Tubular, semi double cradle
Caster (rake angle) - 27.5°
Trail - 111 mm
Front tyre:
Type - Tube, Dunlop D752F
Size - 80/100-21 51P
Rear tyre:
Type - Tube, Dunlop D752
Size - 120/90-18 65P
Front suspension:
Type - Kayaba Upside-down Telescopic fork (pneumatic)
Wheel travel - 300 mm
Rear suspension:
Type - Swingarm (uni-trak with Kayaba gas shock)
Wheel travel - 272 mm
Brake type:
Front - Single disc 250mm Nissin
Rear - Single disc 235mm Nissin
Electrical Equipment:
Headlight:
Type - Semi-sealed beam
Bulb - 12V 60/55W
Taillight - 12V 5/21W
Alternator:
Type - Three-phase AC
Rated output -
More than 36V

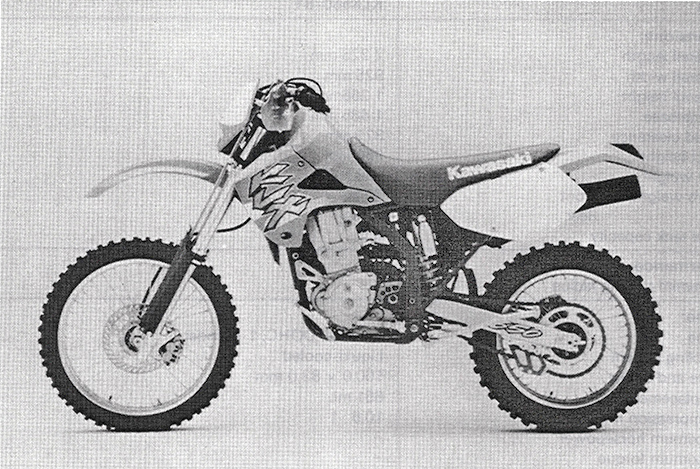

KLX650-D1, D2, D3, D4, D5, D6 (1996-2003)
Dimensions:
Overall length - 2215 mm
Overall width - 925 mm
Overall height - 1230 mm
Wheelbase - 1490 mm
Road clearance - 330 mm
Seat height - 950 mm
Dry weight - 129 kg
Curb weight:
Front - 68 kg
Rear - 76 kg
Fuel tank capacity - 11.6 L
Performance:
Minimum turning radius - 2.4m
Engine:
Type - 4-stroke, DOHC, 1-cylinder
Cooling system - Liquid - cooled
Bore and stroke - 100.0 x 83.0 mm
Displacement - 651 mL
Compression ratio - 10.5: 1
Maximum horsepower -
37 kW (50.3 ps) @6500 r/min (rpm)
Maximum torque -
53 N-m (39.1 ft-lb) @5500 r/min (rpm)
Carburetion system - Carburetor, KEIHIN CVK40 x1
Starting system - Primary kick
Ignition system - CDI
Timing advance - Electronically advanced
Ignition timing - From 8° BTDC @1300 r/min (rpm) to 30° BTDC @3000 r/min (rpm)
Spark plug - NGK DPR8EA-9, ND X24EPR-U9
Valve timing:
Inlet - Open 19° BTDC, Close 65° ABDC, Duration 264°
Exhaust - Open 53° BBDC, Close 27° ATDC, Duration 260°
Lubrication system - Forced lubrication (wet sump)
Engine oil:
Grade - SE, SF, SG, SH, SJ class
Viscosity - SAE10W-40, 10W-50, 20W-40, or 20W-50
Capacity - 1.5 L
Drive Train:
Primary reduction system:
Type - Gear
Reduction ratio - 2.272 (75/33)
Clutch type - Wet multi disc
Transmission:
Type - 5-speed, constant mesh, return shift
Gear ratios:
1st - 2.266 (34/15)
2nd - 1.529 (26/17)
3rd - 1.181 (26/22)
4th - 0.954 (21/22)
5th - 0.791 (19/24)
Final drive system:
Type - Chain drive
Reduction ratio - 3.500 (49/14)
Overall drive ratio - 6.297 in 5th gear
Frame:
Type - Tubular, semi double cradle
Caster (rake angle) - 28.5°
Trail - 122 mm
Front tyre:
Type - Tube, Dunlop D752F
Size - 80/100-21 51M
Rear tyre:
Type - Tube, Dunlop D752
Size - 110/100-18 64M
Front suspension:
Type - Kayaba Upside-down Telescopic fork (pneumatic)
Wheel travel - 300 mm
Rear suspension:
Type - Swingarm (uni-trak with Kayaba gas shock)
Wheel travel - 272 mm
Brake type:
Front - Single disc 250mm Nissin
Rear - Single disc 235mm Nissin
Electrical Equipment:
Headlight:
Type - Semi-sealed beam
Bulb - 12V 30/30W
Taillight - 12V 10W
Alternator:
Type - Three-phase AC
Rated output -
More than 36V
